SPRAY BOTTLES & FILLING STATIONS
The 4000 Series is a complete ecological spray system solution.
Our pressure spray cans are ideal for processing cleaning, leak detection, separating and other spraying media. Spray oils or cooling lubricants can also be used for workpiece processing without any problems.
The benefit of our spraying system lies in the savings when purchasing the spraying media. In addition, there are no disposal costs that would otherwise be incurred if spray cans were used.
Ultimately, we make a contribution to relieving the burden on the environment. The propellant "AIR" replaces harmful propellants, which are usually used in spray cans. AIR does not pollute our atmosphere!
The spray cans can be filled easily and conveniently on a 4000 F filling station. Here you can choose between a material compressed air filling and/or a pure compressed air filling. In addition, we also offer solutions for manual filling of spray bottles.
Your advantages:
- universal use in many industrial sectors
- no disposal costs
- no environmental impact due to the use of air as propellant
- Interior coating to protect sprayers possible
Spray media:
- all slightly liquid spray media which do not attack VITON seals
Notice: All pressure containers are made of aluminium.
Not suitable for alkaline or acidic media.

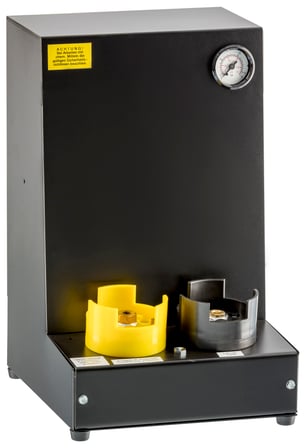

FILLING STATION FOR FILLING SPRAYERS TYPE 4300
4000 F
Art. No. - 40005 / with canister connection
Art. No. - 40001 / with barrel connection
- Table-top unit in compact design
- For filling the spray bottle type 4300
- Filling quantity 400 ml sprayable medium + 200 ml compressed air in one operation
- 3 m suction hose
- Compressed air connection 1/4" / Plug nipple D/F/CH or Japan
- Canister or barrel connection
- Grease nipple for greasing the suction cylinder
- NOT suitable for pumping aceton, media containing aceton or similarly agressive media !
- Powder-coated filling station
- Available in 8 colours
- VITON seals
- Some photos show special editions -
4000 FVE
Art. No. - 40049 / with canister connection
Art. No. - 40101 / with barrel connection
- Filling Station type 4000 F with VITON - EXTREME seals
- Significantly more resistant than VITON seals
4000 F-WK
Art. No. - 40025 / with canister connection
Art. No. - 40021 / with barrel connection
- Filling station as type 4000 F
- Includes wall bracket and mounting accessories
4000 FVE-WK
Art. No. - 40149 / with canister connection
Art. No. - 40121 / with barrel connection
- Filling station as type 4000 FVE
- Includes wall bracket and mounting accessories

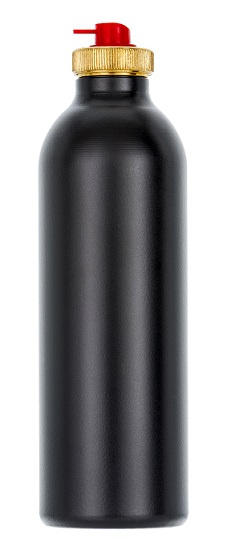

SPRAY BOTTLE REFILLABLE - FILLING VALVE AT BOTTOM FOR USE WITH FILLING STATION type 4000
4300
Art. No. see below
- Aluminium container, bottle-shaped, powder-coated, capacity approx. 600 ml
- Recommended filling quantity 400 ml
- Bottom valve without thread, suitable for filling station type 4000
- Includes 4 spray heads and 2 poppet valves
- Material and air filling takes place at the bottom via filling station
- Available in 9 colours
Available colours:
4300 BL - RAL 5010 - Blue - Art. No. 43101
4300 GR - RAL 6032 - Green - Art. No. 43201
4300 RO - RAL 3000 - Red - Art. No. 43001
4300 OR - RAL 2008 - Orange - Art. No. 43601
4300 GE - RAL 1023 - Yellow - Art. No. 43301
4300 SW - RAL 9005 - Black - Art. No. 43503
4300 SG - RAL 7015 - Slate grey - Art. No. 43421
4300 LG - RAL 7035 - Light grey - Art. No. 43420
4300 WE - RAL 9016 - White - Art. No. 43401
INSIDE COATED SPRAY BOTTLE REFILLABLE - FILLING VALVE BOTTOM SIDE FOR USE WITH FILLING STATIONS TYPE 4000
4300 I
Art. No. see below
- Aluminium container, bottle-shaped, powder-coated, capacity approx. 600 ml
- Inside coated with resin protection
- Recommended filling quantity 400 ml
- Bottom valve without thread, suitable for filling station type 4000
- Includes 4 spray heads and 2 poppet valves
- Material and air filling takes place at the bottom via filling station
- Available in 9 colours
Available in 9 colours:
4300 I-BL - RAL 5010 - Blue - Art. No. 43101-I
4300 I-GR - RAL 6032 - Green - Art. No. 43201-I
4300 I-RO - RAL 3000 - Red - Art. No. 43001-I
4300 I-OR - RAL 2008 - Orange - Art. No. 43601-I
4300 I-GE - RAL 1023 - Yellow - Art. No. 43301-I
4300 I-SW - RAL 9005 - Black - Art. No. 43503-I
4300 I-SG - RAL 7015 -Slate grey- Art. No. 43421-I
4300 I-LG - RAL 7035 - Light grey - Art. No. 43420-I
4300 I-WE - RAL 9016 - White - Art. No. 43401-I
SPRAY BOTTLE MANUALLY REFILLABLE - TYRE FILLING VALVE ON THE SIDE OF THE BOTTLE NECK
4200
Art. No. see below
- Aluminium container, bottle-shaped, powder-coated, capacity approx. 600 ml
- Recommended filling quantity 400 ml
- Tyre inflation valve on bottle neck, lateral
- Includes 4 spray heads and 2 poppet valves
- Not suitable for use with filling station
- Material is filled manually via bottle neck
- Available in 9 colours
Available colours:
4200 BL - RAL 5010 - Blue - Art. No. 42008
4200 GR - RAL 6032 - Green - Art. No. 42010
4200 RO - RAL 3000 - Red - Art. No. 42005
4200 OR - RAL 2008 - Orange - Art. No. 42601
4200 GE - RAL 1023 - Yellow - Art. No. 42009
4200 SW - RAL 9005 - Black - Art. No. 42503
4200 SG - RAL 7015 - Slate grey - Art. No. 42421
4200 LG - RAL 7035 - Light grey - Art. No. 42420
4200 WE - RAL 9016 - White - Art. No. 42011
INSIDE COATED SPRAY BOTTLE MANUALLY REFILLABLE - TYRE INFLATION VALVE ON THE SIDE OF THE BOTTLE NECK
4200 I
Art. No. see below
- Aluminium container, bottle-shaped, powder-coated, capacity approx. 600 ml
- Inside coated with resin protection
- Recommended filling quantity 400 ml
- Tyre inflation valve on bottle neck, lateral
- Includes 4 spray heads and 2 poppet valves
- Not suitable for use with filling station
- Material is filled manually via bottle neck
- Available in 9 colours
Available colours:
4200 I-BL - RAL 5010 - Blue - Art. No. 42008-I
4200 I-GR - RAL 6032 - Green - Art. No. 42010-I
4200 I-RO - RAL 3000 - Red - Art. Nro 42005-I
4200 I-OR - RAL 2008 - Orange - Art. No. 42601-I
4200 I-GE - RAL 1023 - Yellow- Art. No. 42009-I
4200 I-SW - RAL 9005 - Black - Art. No. 42503-I
4200 I-SG - RAL 7015 - Slate grey - Art. No. 42421-I
4200 I-LG - RAL 7035 - Light grey - Art. No. 42420-I
4200 I-WE - RAL 9016 - White - Art. No. 42011-I
SPRAY BOTTLE MANUALLY REFILLABLE - TYRE FILLING VALVE ON BOTTOM SIDE
4500
Art. No. see below
- Aluminium container, bottle-shaped, powder-coated, capacity approx. 600 ml
- Recommended filling quantity 400 ml
- Tyre inflation valve at the bottle bottom
- Includes 4 spray heads and 2 poppet valves
- Not suitable for use with filling station
- Material is filled manually via bottle neck
- Available in 9 colours
Available colours:
4500 BL - RAL 5010 - Blue - Art. No. 45101
4500 GR - RAL 6032 - Green - Art. No. 45201
4500 RO - RAL 3000 - Red - Art. No. 45001
4500 OR - RAL 2008 - Orange - Art. No. 45601
4500 GE - RAL 1023 - Yellow - Art. No. 45301
4500 SW - RAL 9005 - Black - Art. No. 45411
4500 SG - RAL 7015 - Slate grey - Art. No. 45421
4500 LG - RAL 7035 - Light grey- Art. No. 45420
4500 WE - RAL 9016 - White - Art. No. 45401
INSIDE COATED SPRAY BOTTLE MANUALLY REFILLABLE - TYRE FILLING VALVE BOTTOM SIDE
4500 I
Art. No. see below
- Aluminium container, bottle-shaped, powder-coated, capacity approx. 600 ml
- Inside coated with resin protection
- Recommended filling quantity 400 ml
- Tyre inflation valve at the bottle bottom
- Includes 4 spray heads and 2 poppet valves
- Not suitable for use with filling station
- Material is filled manually via bottle neck
- Available in 9 colours
Available colours:
4500 I-BL - RAL 5010 - Blue - Art. No. 45101-I
4500 I-GR - RAL 6032 - Green - Art. No. 45201-I
4500 I-RO - RAL 3000 - Red - Art. No. 45001-I
4500 I-OR - RAL 2008 - Orange - Art. No. 45601-I
4500 I-GE - RAL 1023 - Yellow - Art. No. 45301-I
4500 I-SW - RAL 9005 - Black - Art. No. 45411-I
4500 I-SG - RAL 7015 -Slate grey- Art. No. 45421-I
4500 I-LG - RAL 7035 - Light grey- Art. No. 45420-I
4500 I-WE - RAL 9016 - White- Art. No. 45401-I
