PRESSURE CUP GUNS
With our pressure cup guns of the 3000 series, thicker spraying media or sealants can be processed. These spray guns are mainly used in the professional processing of underbody protection, stone chip protection and cavity sprays. The main areas of application are car body construction and repair work.
All devices work according to the pressure principle, whereby the media are conveyed by overpressure up to the material nozzle. In the case of spray pistols equipped with a spray nozzle, the material is coated with a spray jet when it exits. This ensures a clean spray pattern. A variety of different structures can be created by means of various regulations.
A highlight is our angular slotted cavity spray probe, which is characterized by an outstanding spray mist in spherical form. This ensures a complete coating of the cavities to be protected. Our angled nozzles, in combination with a spray air regulation, are able to guarantee a very fine, flat application of the media to be processed.
Your advantages
- Professional execution
- Processing of normal to high viscosity media
- Material Order in "Original Appearance"
- Spraying of various structures
Notice: All pressure containers are made of aluminium.
Not suitable for alkaline or acidic media.
PRESSURE CUP SPRAY Guns FOR 1 LITRe CANS

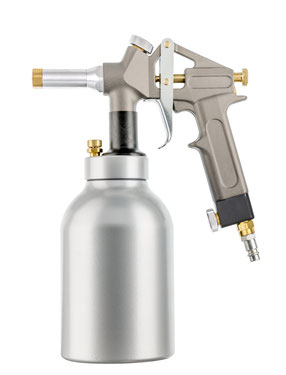

3000 DV
Art. No. 30001
- Gun body aluminium pressed part, anodized
- Aluminium container, cylindrical, powder-coated
- Suspension bearing for 1 litre can
- Pressure closure at the can thread
- Nozzle bore 1.4 mm
- Adjustable intake air volume
- Adjustable material quantity
- Adjustable air injection
- Galvanised steel riser pipe
- Expandable with cavity spray hose set type 3900/3901 WHSK
- VITON seals
3000 DV - Set
Art. No. 30411
- Gun as 3000 DV
- Including cavity spray hose set type 3900 WHSK 02
3000 DVR
Art. No. 30112
- Gun body aluminium pressed part, anodized
- Aluminium container, cylindrical, powder-coated
- Suspension bearing for 1 litre can
- Pressure closure at the can thread
- Nozzle bore 1.4 mm
- Adjustable intake air volume
- Adjustable material quantity
- Adjustable air injection
- Galvanised steel riser pipe
- Expandable with cavity spray hose set type 3900/3901 WHSK
- VITON seals
- Incl. non-return valve and exhaust air valve for pressure container
3000 DVR - Set
Art. No. 30401
- Gun as 3000 DVR
- Including cavity spray hose set type 3900 WHSK 02
COMBINATION PRESSURE CUP SPRAY GUns FOR 1 LITRE CANS AND CANISTER GOODS

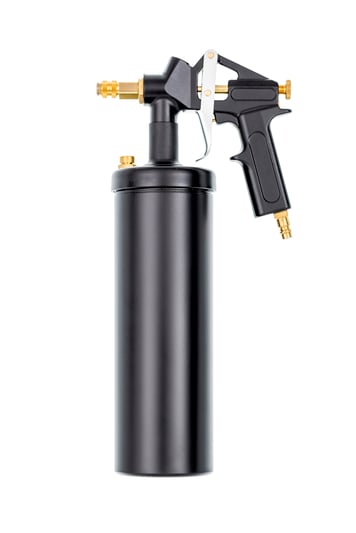

3000 FG
Art. No. 30601
- Pistol body aluminium pressed part, anodized
- Aluminium container, cylindrical, powder-coated, capacity approx. 1.400 ml
- Threaded holder for bottle thread 1 litre can
- Suitable for direct filling of canister goods
- Nozzle bore 1,4 mm
- Adjustable intake air volume
- Adjustable material quantity
- Adjustable air injection
- Galvanised steel riser pipe
- Expanadable with cavity spray hose set type 3900/3901 WHSK
- VITON seals
3000 FG - Set
Art. No. 30621
- Gun as 3000 FG
- Including cavity spray hose set type 3900 WHSK 02

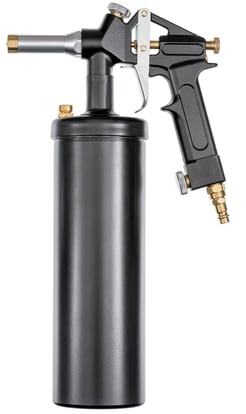

3000 FGR
Art. No. 30610
- Gun body aluminium pressed part, anodized
- Aluminium container, cylindrical, powder-coated, capacity approx. 1.400 ml
- Threaded holder for bottle thread 1 litre can
- Suitable for direct filling of canister goods
- Nozzle bore 1,4 mm
- Adjustable intake air volume
- Adjustable material quantity
- Adjustable air injection
- Galvandised steel riser pipe
- Expandable with cavity spray hose set type 3900/3901 WHSK
- VITON seals
- Incl. non-return valve and exhaust air valve for pressure container
3000 FGR - Set
Art. No. 30631
- Gun as 3000 FGR
- Including cavity spray hose set type 3900 WHSK 02
PRESSURE CUP SPRAY Guns FOR CANISTER GOODS

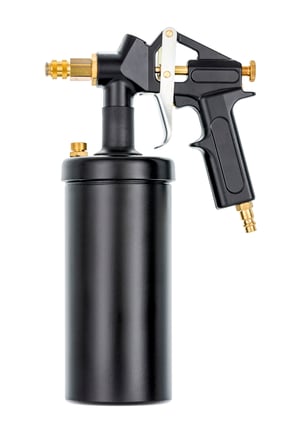

3100 ASR
Art. No. 31306
- Gun body aluminium pressed part, anodized
- Aluminium container, cylindrical, powder-coated, capacity approx. 1,000 ml
- Suitable for direct filling of canister goods
- Nozzle bore 1,4 mm
- Adjustable intake air volume
- Adjustable material quantity
- Adjustable air injection
- Galvanised steel riser pipe
- Expandable with cavity spray hose set type 3900/3901 WHSK
- VITON seals
- Incl. non-return valve and exhaust air valve for pressure container
3100 ASR - Set
Art. No. 31301
- Gun as 3100 ASR
- Including cavity spray hose set type 3900 WHSK 02
CAVITY SEALING PRESSURE CUP guns FOR 1 LITRe CANS

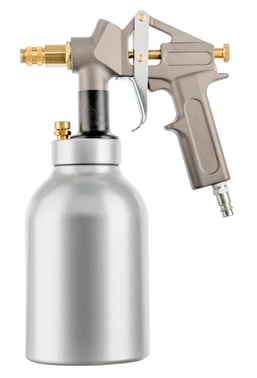

3200 DVR
Art. No. 32001
- Gun body aluminium pressed part, anodized
- Aluminium container, cylindrical, powder-coated
- Suspension bearing for 1 litre cans
- Pressure closure at the can thread
- Incl. quick coupling for cavity spray hoses
- Adjustable material quantity
- Optionally with injection air regulating screw
- Galvanised steel riser pipe
- For use with hoses type 3900/390
- VITON seals
- Incl. non-return valve and exhaust air valve for pressure container
3200 DVR - Set
Art. No. 32402
- Gun as 3200 DVR
- Including cavity spray hose set type 3900 WH 02
CAVITY SEALING PRESSURE CUP Guns FOR CANISTER GOODS

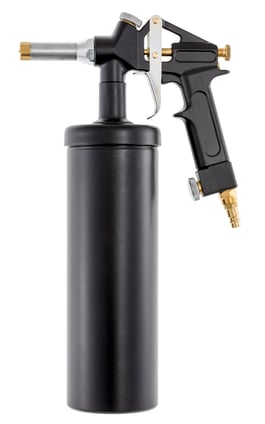

3200 ASKR
Art. No. 32203
- Gun body aluminium pressed part, anodized
- Aluminium container, cylindrical, powder-coated, capacity 1.000 ml
- Suitable for direct filling of canister goods
- Incl. quick coupling for cavity spray hoses
- Adjustable material quantity
- Optionally with injection air regulating screw
- Galvanised steel riser pipe
- For use with hoses type 3900/3901
- VITON seals
- Incl. non-return valve and exhaust air valve for pressure container
3200 ASKR - Set
Art. No. 32601
- Gun as 3200 ASKR
- Including cavity spray hose set type 3900 WH 02
3300 HSDR
Art. No. 33001
- Gun body aluminium pressed part, anodized
- Aluminium container in bottle form, powder-coated, capacity approx. 1.250 ml
- Incl. quick coupling for cavity spray hoses
- Adjustable material quantity
- Optionally with injection air regulating screw
- Steel riser pipe
- For use with hoses type 3900/3901
- VITON seals
- Incl. non-return valve for pressure container
3300 HSDR - Set
Art. No. 33101
- Gun as 3300 HSDR
- Including cavity spray hose set type 3900 WH 02
CLEANING AND DISINFECTION PRESSURE CUP Guns FOR CANISTER GOODS
3200 K1
Art. No. 32304
- Especially for climate disinfection and diesel particulate filter cleaners
- Gun body aluminium pressed part, anodized
- Aluminium container, cylindrical,powder-coated, capacity 1.000 ml
- Incl. quick coupling for cavity spray hoses
- Adjustable material quantity
- Optionally with injection air regulating screw
- Plastic riser pipe (PA)
- For use with hoses type 3900/3901
- VITON seals
- Incl. non-return valve and exhaust air valve for pressure container
3200 K1 - Set
Art. No. 32305
- Gun as 3200 K1
- Including cavity spray hose set type 3900 WH 02
3300 DPF
Art. No. 33140
- Especially for diesel particulate filter cleaners and climate disinfection
- Gun body aluminium pressed part, anodized
- Aluminium container in bottle form, powder-coated, capacity 1,250 ml
- Incl. quick coupling for cavity spray hoses
- Adjustable material quantity
- Optionally with injection air regulating screw
- Plastic riser pipe (PA)
- For use with hoses type 3900/3901
- VITON seals
- Incl. non-return valve for pressure container
3300 DPF - Set
Art. No 33158
- Gun as 3300 DPF
- Including cavity spray hose set type 3900 WH 02
